Control Cables

Italian Standard Control Cable

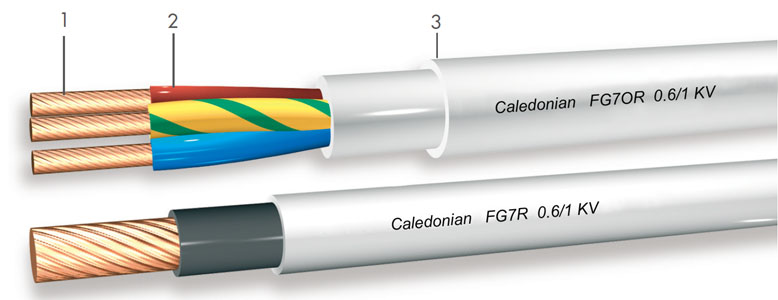

FG7R

Fire retardant, LSF power, control and signalling cables,insulated in type G7 elastomeric compound and pvc sheathed with flexible conductors for fixed installation.

Normative references:

  Italian standard: CEI 20-13 UNEL 35375
    UNEL 35377 (FG7OR over 7 cond.)
  Colours code: CEI UNEL 00722/ HD 308

Construction:

Characteristics:

Applications:

Section Max diam.
conductor
Insulation
thickness
sheath thickness Outer diameter Max cond. resist.
at 20°C
Cable weight
mm2 mm mm mm mm ohms/km kg/km
FG7R
1x1.5 0.26 0.7 1.4 6.0 13.3 55
1x2.5 0.26 0.7 1.4 6.4 7.98 65
1x4 0.31 0.7 1.4 6.9 4.95 85
1x6 0.31 0.7 1.4 7.5 3.30 105
1x10 0.41 0.7 1.4 8.4 1.91 155
1x16 0.41 0.7 1.4 9.6 1.21 210
1x25 0.41 0.9 1.4 11.2 0.78 310
1x35 0.41 0.9 1.4 12.2 0.554 410
1x50 0.41 1 1.4 13.9 0.386 560
1x70 0.51 1.1 1.4 16.0 0.272 770
1x95 0.51 1.1 1.5 17.7 0.206 990
1x120 0.51 1.2 1.5 19.7 0.161 1250
1x150 0.51 1.4 1.6 21.8 0.129 1550
1x185 0.51 1.6 1.6 23.9 0.106 1900
1x240 0.51 1.7 1.7 26.4 0.0801 2450
1x300 0.51 1.8 1.8 28.9 0.0641 3000
1x400 0.51 1.9 1.9 35.0 0.0486 4000
1x500 0.51 2.2 2.1 39.5 0.0384 5000
1x630 0.51 2.4 2.2 44.0 0.0287 6600
FG7OR
2x1.5 0.26 0.7 1.8 10.1 13.30 155
2x2.5 0.26 0.7 1.8 10.9 7.98 190
2x4 0.31 0.7 1.8 11.9 4.95 240
2x6 0.31 0.7 1.8 13.1 3.30 310
2x10 0.41 0.7 1.8 15.3 1.91 460
2x16 0.41 0.7 1.8 17.3 1.21 620
2x25 0.41 0.9 1.8 20.5 0.780 900
2x35 0.41 0.9 1.8 22.9 0.554 1200
2x50 0.41 1 1.8 26.1 0.386 1650
3x1.5 0.26 0.7 1.8 10.6 13.3 175
3x2.5 0.26 0.7 1.8 11.4 7.98 220
3x4 0.31 0.7 1.8 12.5 4.95 280
3x6 0.31 0.7 1.8 13.8 3.30 365
3x10 0.41 0.7 1.8 16.2 1.91 550
3x16 0.41 0.7 1.8 18.3 1.21 760
3x25 0.41 0.9 1.8 21.8 0.780 1100
3x35 0.41 0.9 1.8 24.3 0.554 1500
3x50 0.41 1 1.8 27.8 0.386 2050
